4056843031127

Multinorm und CCTV Kameras-Multinorm-Kameras | BWFC-261KBIA

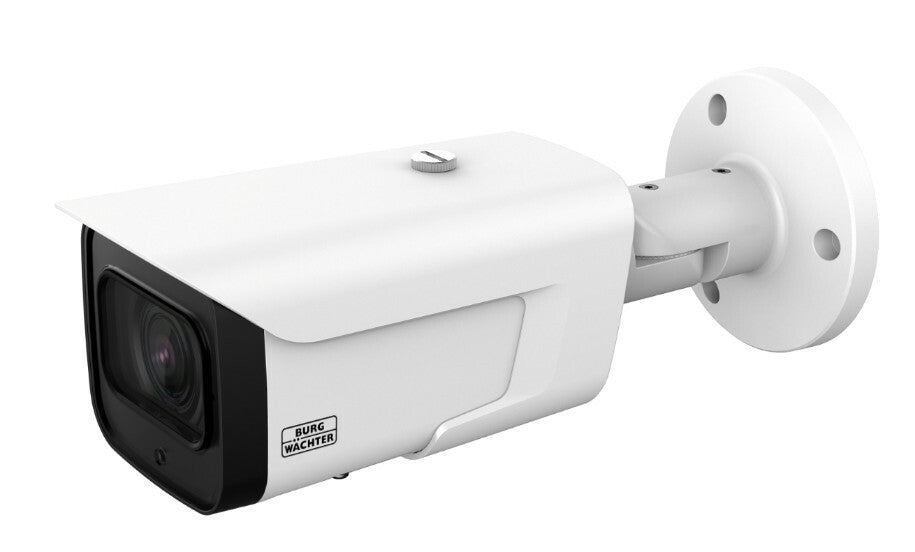

BWFC-261KBIA

SKU: 4056843031127

Version:

Version

Quantity: pc
Material number
503112
Type
SFC-Tag/Nacht IR-Bulletkamera
Max. Image resolution [pixels]
2MP (1080p) / 960H CVBS (analog)
Imaging sensor
1/2.8" CMOS
Light sensitivity [lux]
0.004Lux/F1.6, 30IRE, 0 Lux bei IR
Aperture
F1.6
Viewing angle vertical
29°
Viewing angle (horizontal)
108°
Low Light Sensor
Yes
Shutter
1/4s~1/100,000s
IR cut filter
Yes
Aperture control
fix
Max. Frame rate
25/30fps@1080P(CVI/AHD/TVI),bis 50/60fps@720P(CVI)
Image mirroring vertical
Yes
Image mirroring horizontal
Yes
Zoom (optical / digital)
5x/16x
Lens type
motorised zoom lens
Lens Focal length
2,7 - 13,5 mm
D-O-R-I max.
153m - 61m - 31m - 15m
D-O-R-I min.
44m - 18m - 9m - 5m
I/O switching contacts
0 / 0
Audio inputs/outputs
1 x Cinch / 1x Cinch, Mikrofon
Control interface
BNC
Spotlight range [m]
80m
LED wavelength
850 nm (IR)
Headlight range
80m
Headlight dimming
Yes
Day/night changeover
Yes
Noise reduction
2DNR3DNR
Translation missing: en.technical_info_table.products.verstärkungsregelung
Yes
Private zones
Ja, 8
Region of Interest (ROI)
8 Zonen
Backlight compensation
120dB TrueWDRBLCHLC
Camera setting
OSD - Rekorder-Menü
CCTV video output
BNC, 75 Ohm 1 Vss
Video norm switching
DIP SwitchYes(AHD/CVI/TVI/Analog)
Protection classes
IP 67
Active image elements
1920 (H) × 1080 (V)
White balance
AWB; manual
Audio codec
AAC, G711A/U, PCM
Signal/Noise ratio
> 65 dB

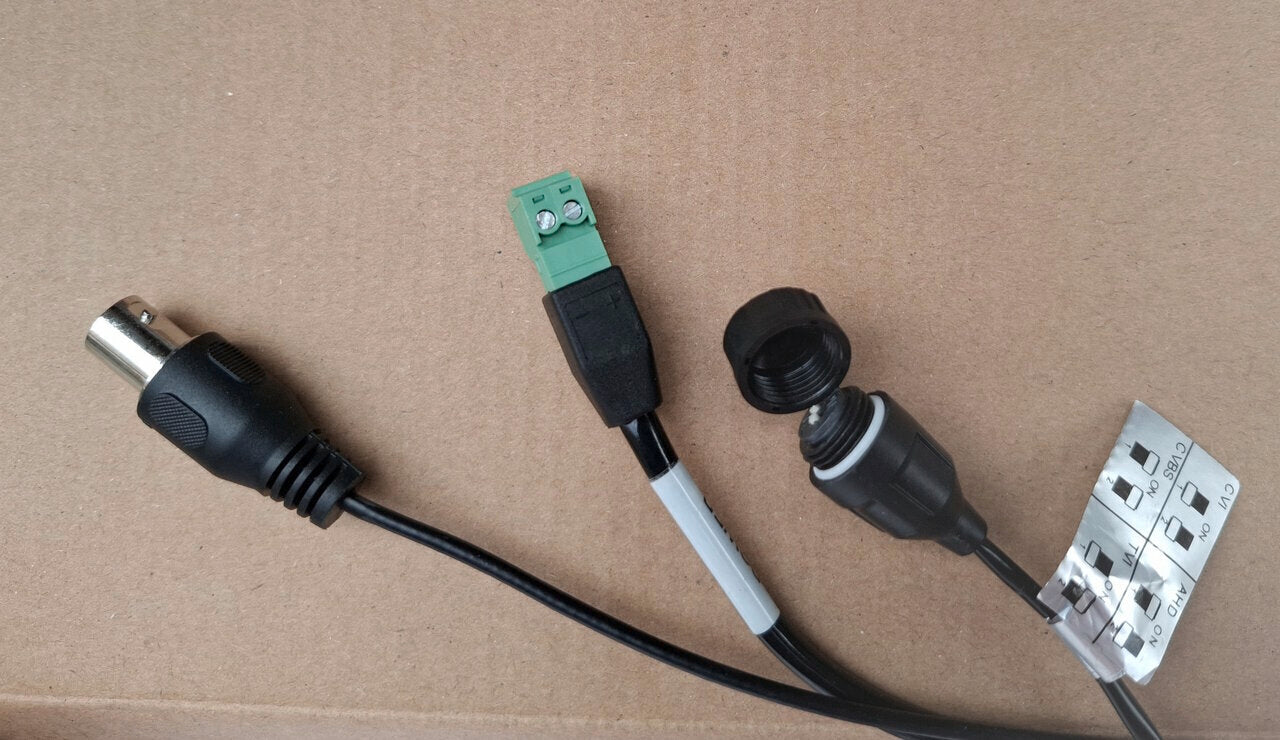

Plug type
2-Pol Schraubklemme
Special features
Multi-Norm: HDCVI, AHD, TVI, CVBS
Note
Die Videonorm kann bequem über DIP-Schalter eingestellt werden. -- - Die Reichweite der IR-Strahler ist stark abhängig vom Einsatzort und von der Umgebung. Stark absorbierende Flächen, wie z.B. dunkle raue Strukturen (Boden, Rasen, Asphalt) können zu einer deutlichen Verringerung der maximalen Reichweite führen.
Marking
CE

Accessories and spare parts

SNPS-12D2
SNCA-PM-4661
PA-KF-5.5/10
SNCA-MK-4537
SNCA-MK-4531-E
SNCA-MK-4532
